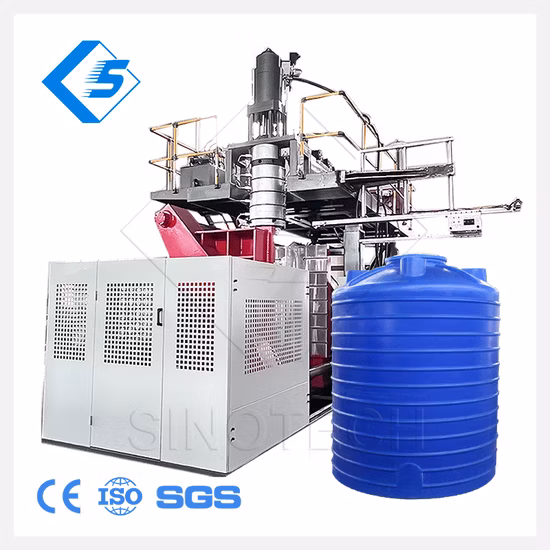

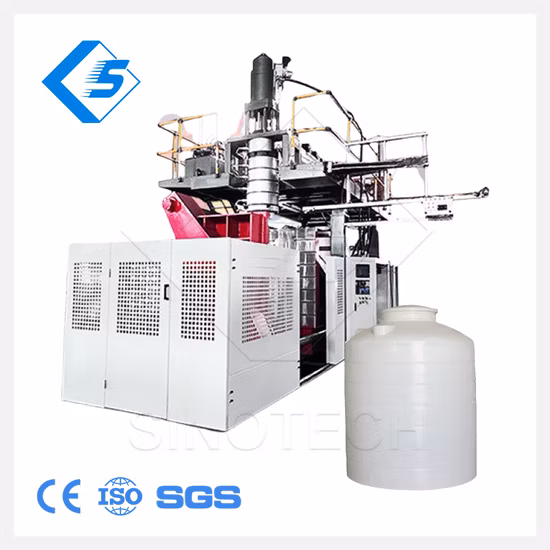

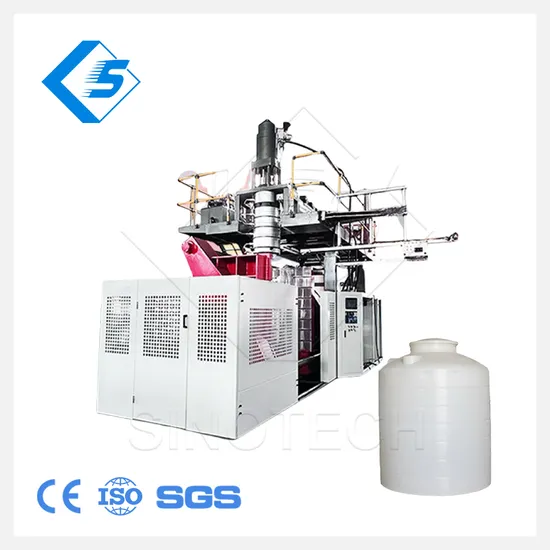

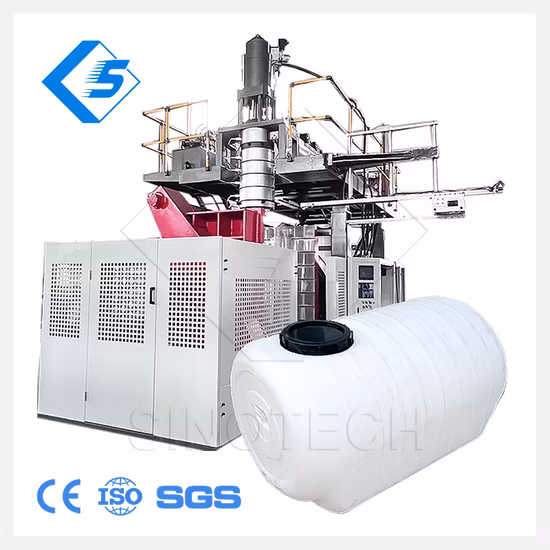

STD-1000L Extrusion Blow Molding Machine
Machine Features
1. Special design for 1000L PE/PP/ABS... Water tanks.
2. Die head design with easy to change the material and color.
3. Latest mold changing system, much faster and easier.
4. Optimized hydraulic system, proportional pressure control
5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds
6. Simple structure in linear type, easy in installation and maintenance.
7. Servo system
8. With robot arm take out the finished product
9. One to three multi-layers choose
10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving11. Full Servo system control.12. Simple structure in linear type, easy in installation and maintenance.13. With a robot arm take out the finished product.14. Single die-head and Single station.

Product Parameters

Technical Specification
Specifications		1000L
Max.Container Capacity	L	1000
Machine Weight	T	38
Machine Dimension(L*W*H)	M	7*7.5*5.5
Total Power	Kw	287
Average Power Consumption	Kw	186
Die Head
Accumulator Volume	KG	35
Number of Heating Zone	Zone	11
Power of Die Heating	Kw	88
Max. Die-pin Diameter	mm	450
Extruder Unit
Screw Diameter	mm	100/110/100
Screw L/D Ratio	L/D	25/1
Number of Heating Zone	Zone	13
Heating power	Kw	65
Max. Melting Capacity	KG/Hr.	370
Extruder Motor Power	Kw	30/30/37
Clamping Unit
Max.Mold Size(W*H)	mm	1200*1500
Distance Between Platen	mm	800~2400
Platen Size(W*H)	mm	1500*1500
Clamping Force	KN	800
Hydraulic System
Main Oil Pump Power	Kw	30
Servo Oil Pump Power	Kw	7.5
Thickness Control System	Point	100

Application

Detailed Photos

Total Machine Control System

1.The control system is simple but humanized pages easy for operation.2.100 point parison thickness controller & profile eddition.3. Production technics and parameter saving for 20 moulds.4. Professional engineer setting pages for problem diagnosis.5.Short-cut key board & emergency stop for safety production.6. Aluminum cantilever operation box and easy adjustment.7. Remote technical support & program updating.

Die head system1. Accumulator die head.2. Temperature control: automatic temperature control module.3. The max die pin of extrusion is 600mm.

Mould Platen1. Latest Euro style toggle type clamping system.2. Bigger platen size capable to carriage more bigger moulds.3. Stronger clamping force can make the blow molding item bottle joint line finishing smoother.

Automatic Labor Arm
1. It is a necessary parts for blow molding machine to ensure the workers operation safe.2. Labor saving, easy operation, high production efficiency.

Drum Mould
1. Reasonable cold water runner design for heat transmission.2. Cutting blade length& flatness for scraps easy removing.3. Parison over-flow groove depth equal to product weight.4. Suitable water inlet& outlet position for easy production.5. precise cold shrinkage calculation to insure filling volume.6. Multi-functional selection for mould action requirements.

Blowing System
1. Bowing stand adapt to YUKEN, direction valve, using hydraylic drive.2. Blow rod can optional equipped quick exhaust function.3.Match non-contact induction switch, ensure accuracy of positioning.4. Optional air rotating rod, in order to machining tntenal thread.5. Optional equipped with widen guide rod(wait water cooling), widen the parison.

Extrusion System
1. Screw designed specially based on working quality of material. Diameter of screw: φ120mm, L/D30/12. Material of screw: High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥800, brittleness≤2.3. Material of barrel: High quality nitriding steel 38CrMoAlA, with nitriding surface HV ≥ 900, brittleness ≤2.4. Drive mode:AC motor + Hard gear surface decelerator.

Air Cooling Fan
1. Air cooling fan guaranteed constant temperature for screw.

Gear Box
1. Frequency conversion speed regulation& Alloy steel hardened gear box.2. Table speed regulation, energy saving, low noise, durable.

Hydraulic system
1. The main hydraulic system adopts to Japan YUKEN and SUMITOMO hydraulic valves and servo pump, precise pressure of proportion, flow control, quick actions, longer working life.2. Hydraulic motor available to upgrade to servo drive energy saving, low noise& increase working life of hydraulic units.

Electric control system
1. Japan Mitsubishi PLC system, with Mitsubishi temperature control module.2. Weinview Touch Screen to easily set and change communication, parameter, image display withself-diagnose.3. Japan Mitsubishi inverter provide stable and efficient extruding process.4. Other main electrical components are from wolrd-famous brands such as OMRON, LG and etc.
