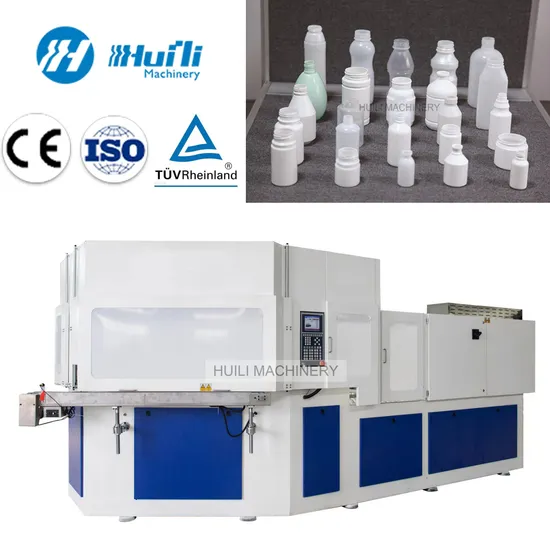

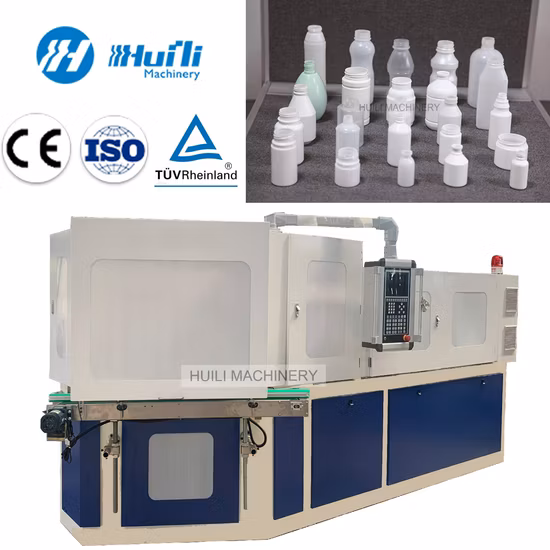

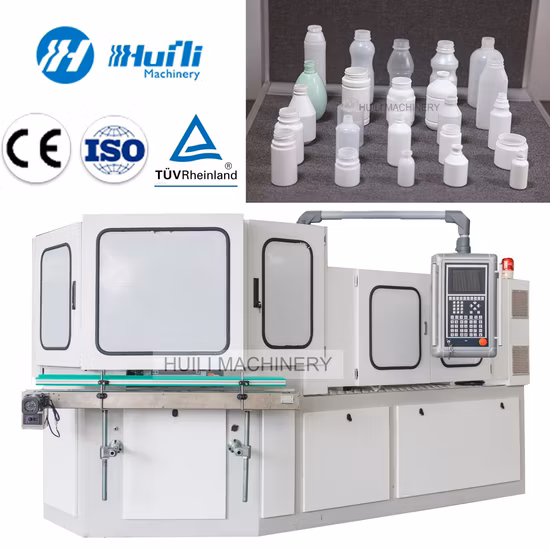

One Stage Pet Bottle Blowing Machine, Full Automatic Bottle Blowing Making Machine, Injection Stretch Blow Molding Machine

Basic Info.

Model NO.	ISB 800AN
Dimension (L*W*H)	4200*1750*3400 mm 4500*1950*3400 mm
Certification	CE, ISO9001:2008, BV, SGS, Ukas, Laf
Making Method of Parison	Injection Stretch Blow Molding Machine
Computerized	Computerized
Automation	Automatic
Service Support	Serve on-Site, Response Via Both Voice and Videos
Working Mode	One Step, One Stage, Single Stage
Power Requirement	as Per Requests
OEM/ODM Available	Yes
Company Type	Manufacturer, Direct Factory
Circle Time	10-12 Seconds
Key Selling Points	High Efficient, Stable, Unique Modular Design
Transport Package	Wooden Case
Specification	1-12 cavity for option
Trademark	JASU
Origin	China
HS Code	8477401000
Production Capacity	120 Sets/Month

Product Description

1. About one step injection stretch blow molding machine (ISBM)?--One step injection stretch blow molding machine also known as single stage blow molding machine.--It integrates the functionality of injection, stretch blow and ejection within one machine.--It uses latent heat, so it cuts the cost of reheat and shortens the cooling time.

2. The know-how of the ISBM machine 2.1 Dehumidifying and drying of PET materials 2.2 Melting and injecting of the raw materials into the preform mold through the injection nozzle 2.3 Cooling of the molten material in the preform mold to 120 ° Celsius 2.4 Transfer of the hot preform mold to a bottle mold to begin the stretch molding

3. Benefits: high performance, high effective and high energy saving 3.1 High Quality Production Create blemish-free bottles. Ensured flatness of bottle mouth and high precision of bottle sizes and the thread of bottleneck, without any scrap or scratches. The finished bottles are top-grade and exquisite, with uniform thickness, clear surface, and almost invisible parting line. 3.2 Upgraded Technology 1. The least procedure of processing to shorten the cycle time, save labor cost, prevent humidity and pollution caused by human intervention. 2. JASU ISBM machine utilizes two servo driven hydraulic pumps which can adapt their speed and output precisely to the required demand throughout the entire cycle of the machine thereby reducing actual energy consumption by about 50% comparing with the traditional 2 step molding process. 3. Hot runner with valve gate type, designed with the special anti-leak device, is adopted for higher preform gate finishing. 4. Stable mechanical operation and low noise. 5. Equipment parameters and processes are set by HMI for living supervising of the equipment operation and its matching up with the panel switches and buttons enables convenient, direct, and highly efficient operation of the whole system. 6. Quick and Easy Mold Changeovers The use of interchangeable insert mold parts simplifies the mold changeover and reduces the maintenance cost, and prolongs the lifetime of the mold.
4. Various applications and materials
--Injection blowing molding is appliable to various resins PET, High transparent PP, PCTG, PETG, SAN, PC, PMMA, PS, Tritan (BPA Free)--Widely used for manufacturing bottles for pharmaceutical, healthcare, food, beverages, cosmetics, lampshade, and other applications. 1. Final products: bottles, jar, flask, jug, can, tin, kettle, cruet, etc. 2. Service field: pharmaceuticals (syrup, tablet, pills, injection bottle, capsule bottle, dropping bottle, oral liquid bottle, and another medicine bottle) , cosmetics, liquor, infusion bottles, detergent, mouthwash, baby feeding bottles, spice, salad dressing, foods (e.g. condiments, dry goods, peanut butter, coffee granules), mineral water, etc.
3. Lighting diffuser, lampshade, lamp chimney, LED bulb housing, big safety bulb housing, irregular bulb housing A30-A80, A80-A300, lotus bulb housing etc. --Shapes: jar, oval, PET can, plain round, non-round, wide-mouth, ultra-light, irregular.
5. Datasheets of one-step injection stretch blow molding machine

Item			Unit	Machine Type
				ISB 800N-3	ISB 800AN-3	ISB 1100N-3	ISB 1100AN-3	ISB 1100AN-100T-3
Injection Part	Screw Diameter		mm	40	50	40	50	50
	Screw L/D Ratio		L/D	20.5:1	20.5:1	20.5:1	20.5:1	24:1
	Screw Speed		r/min	0-190	0-150	0-190	0-150	0-150
	Theoretical Injection Capacity		cm3	238	481	238	481	481
	Injection Pressure		MPa	174	176	174	176	176
	Max. Hydraulic Pressure		Kg/cm	140	140	140	140	140
	The Actual Injection Quantity		g(ps)	225	452	225	452	452
			Oz	8	16	8	16	16
	Screw Stroke		mm	190	245	190	245	245
Clamping Part	Blow Clamping Force		KN	80	80	150	150	150
	Clamp Tonnage		KN	400	400	600	600	1000
	Wheel Diameter		mm	800	800	1100	1100	1100
	Max. Height	PP, PET, PETG, Tritan, PS, PC	mm	200	200	200	200	200
		PC, PETG, Tritan, PS		220	220	220	220	220
	Open Vertical Mode Trip		mm	570	570	570	570	600
Others	Max. Pump Pressure		MPa	16	16	16	16	16
	Servo Motor		Kw	22	22	22	22	22
	Molde Opening & Molde Locking Motor (Double Pump)		Kw	22	22	22	22	22
	Electric Power		Kw	8.9	12.2	8.9	12.2	12.2
	Tank Volume		L	420	420	420	420	420
	Dimension of Machine		m	4.2*1.75*3.4	4.2*1.75*3.4	4.5*1.95*3.4	4.5*1.95*3.4	4.5*1.95*3.4
	Machine Weight		T	5.5	6	8.5	9	9.5
--Parameters are subject to change without prior notice. --Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according to customers' requirements.

7. Why JASU Precision Machinery?
We are THE FIRST to manufacture One Stage Injection Stretch Blow Molding Machine in China on basis of digestion and absorption of the advanced technology from Japan and Germany.

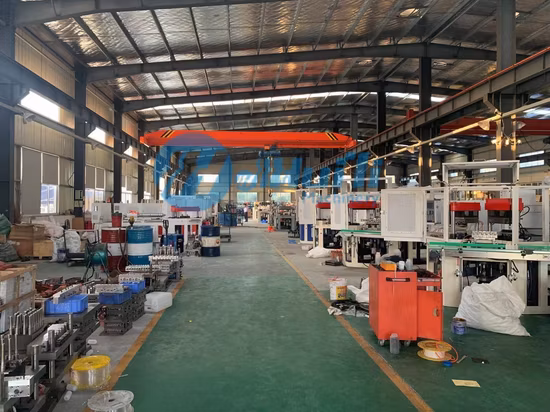

Manufacturer/Direct Factory with production base takes 24000m2.Own highly qualified technical staffs (20-30 persons) and R/D center.Obtained a number of technical patents. Market network throughout the country , and export to many countries of East Europe, South America, South Africa etc. Our machine enjoyed high reputation among customers.Overseas sales increase 33% annually.Service technicians (holding visa and passport) are on call and able to serve on-site and instruct via voice and videos.

8. Question & Answer.
Q1: Are you a factory or trading company?A1: We are established in 2003, a actual factory and manufacturer in the line of injection blow molding machine for 18 years.Q2: Where is your factory located? How can I visit you?A2: Our factory is located in Panyu District, Guangzhou, Guangdong Province, China, about 48 minutes by high-speed railway from Hong Kong. 5 minutes driving away from Shiqiao subway station. We can book hotel for you and pick you up from CAN BAIYUN airport or Guangzhou south railway station.Q3: How about the payment term?A3: Advancement (subject to our marketing strategy and both parties' discussion) and settle the balance payment prior to delivery.Q4: What about your main market?A4: Our machines were sold well in China, also exported and enjoyed a good reputation among customers from Europe, Russia, Southeast Asia, Middle and South America, Africa etc. Our customers widely spread over Russia, Italy, Poland, Turkey, Netherlands, Sweden, Bulgaria, Brazil, Ecuador, Thailand, India, Myanmar, Malaysia, Vietnam, Cambodia, Egypt, Algeria, South Africa, Ivory Coast, Philippines, Bangladesh etc. Q5: How does your factory do regarding quality?A5: Quality is the most important principle. JASU people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification. Patents and many other certificates obtained also tells this. Click to learn moreQ6: What about warranty and do the engineers available to overseas?A6: One year warranty. During this period, if you need any support on installation, adjustment , operation or maintenance, our engineers can go abroad to fix for you.Q7: Others?A7: We will request the working voltage and power frequency at the buyer's side when he placing the order. Each order will be fulfilled as a turn-key project of machine.

1. We will check and test the machine and send the video to the customer for reference prior the delivery.
2. Attach/send an operational manual in English version with the shipment.
3. To use the machine only need to connect power and connect to the air/water supply according to the manual or video instructions if requested.
4. Service technicians are on call to instruct via voice and videos. They all hold visa and passport and be able to serve on-site.

Contact us to share more videos and details.
