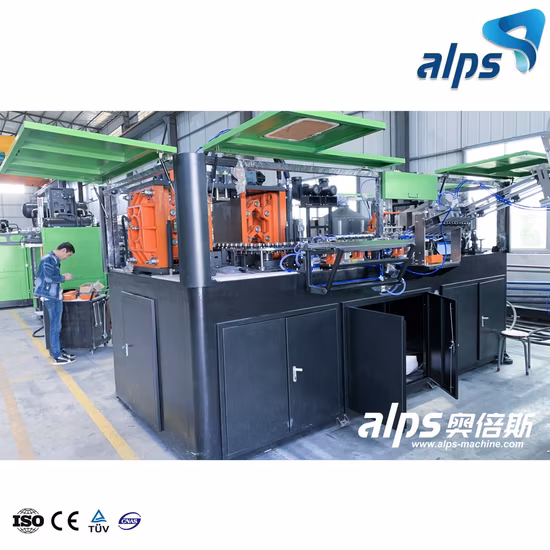

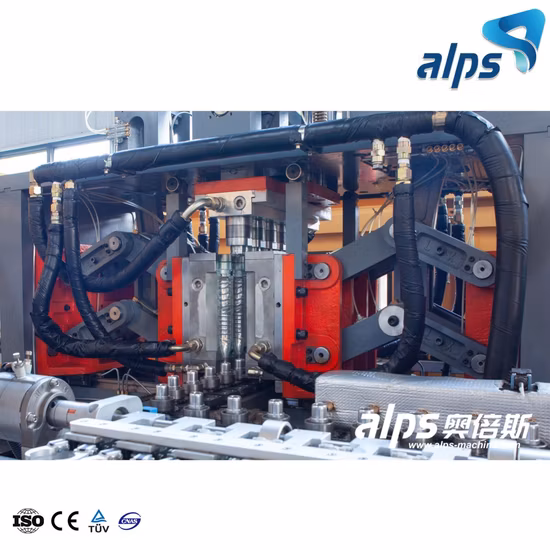

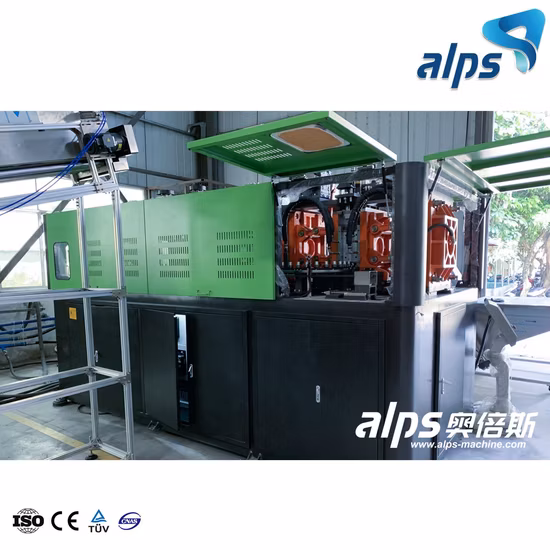

Full Automatic Plastic Bottle Oil Shampoo Detergent Carbonated Drink Juice Drinking Water Beverage Blowing Making Machine Pet Stretch Blow Molding Machine

Basic Info.

Model NO.	MQ-105A/85A
Certification	CE, ISO9001:2008
After-sales Service	Engineers Available to Service Machine Overseas
Weight	5000kg
After-Sales Service Provided	Provide Technical Services at Any Time
Total Power	42kw
Output	2600pieces/Hour
Size(L*W*H)	4.5*1.8*1.9m
Max. Volume	2L
Transport Package	Waterproof Film or Wooden Box
Specification	SGS TUV
Trademark	MQ
Origin	China
HS Code	8477300000
Production Capacity	2600pieces/Hour

Product Description

Machine specification:

ITEM	MQ-105A1	MQ-105A2	MQ-105A4	MQ-85A2	MQ-85A4
Cavity number	1	2	4	2	4
Container Volume	2L	2L	2L	1L	1L
Mold Opening Stroke	118mm	118mm	118mm	98mm	98mm
Mold thickness	180mm	180mm	180mm	180mm	180mm
Stretching stroke	450mm	450mm	450mm	410mm	410mm
Theoretical output	800 Bph(*)	1500 Bph(*)	2600 Bph(*)	1600 Bph(*)	2800 Bph(*)
Container diameter	50-105mm	50-105mm	50-105mm	40-85mm	40-85mm
Container height	50-360mm	50-360mm	50-360mm	40-310mm	40-310mm
Neck range size	40-100mm	40-100mm	40-100mm	40-85mm	40-85mm
Voltage/Frequency	Three-phase380V/50-60HZ
Total power	16Kw	26Kw	42Kw	25Kw	35Kw
Use power	7Kw	12Kw	22Kw	10Kw	20Kw
Working pressure	8bar	8bar	8bar	8bar	8bar
Blow pressure	30bar	30bar	30bar	30bar	30bar
Low Air Volume	1.0m³/min	1.6m³/min	2.0m³/min	1.6m³/min	2.0m³/min
High Air Volume	0.7m³/min	1.2m³/min	2.4m³/min	1.0m³/min	2.0m³/min
Water volume	16-25L/min	20-30L/min	20-30L/min	16-25L/min	20-30L/min
Dimensions(L*W*H)	2.2*1.8*1.9m	3.1*1.8*1.9m	4.5*1.8*1.9m	2.9*1.8*1.9m	3.8*1.8*1.9m
Weight	2100kg	2800kg	5000kg	2600kg	4500kg
Pass rate	≥99.8%	≥99.7%	≥99.7%	≥99.8%	≥99.8%

Machine Features:
1.Low labor and energy cost, high efficiency and profit, with automatic bottle embryo delivery process.2.The blow molding machine has automatic alarm, automatic fault detection and judgment function, easy and fast maintenance.3.Omron, Festo, Parkers are our accessories suppliers.4.Easy operation and stable performance with Mitsubishi or Siemens human-computer interface control program.5.Strong penetrability, even heating and energy saving with Philips infrared lamp.6.The blow molding machines are widely used in the production of mineral water bottles, edible oil bottles, food packaging bottles, daily chemical bottles, agricultural medicine bottles, and many other plastic container packaging fields.
Bottle Blowing Process:

Company Introduction:
Taizhou Maiqiang Machinery Co., Ltd is located in Huangyan, Taizhou, Zhejiang Province, the hometown of mould in China. The company is manufacturing high speed automatic blow molding machine, automatic hollow blow molding machine, automatic high-capacity blow molding machine, semi-automatic blow molding machine and blow mold.The blow molding machines are widely used in the production of mineral water bottles, edible oil bottles, food packaging bottles, daily chemical bottles, agricultural medicine bottles, and many other plastic container packaging fields. Taizhou Maiqiang Machinery Co., Ltd can provide a variety of bottle making equipments and very suitable technical solutions.Taizhou Maiqiang Machinery Co., Ltd has professional design, production team, which provide a solid foundation for manufacturing excellent quality and performance blow molding machines. Our blow molding machines are exported to America, Europe, South korea, the Middle East, Southeast Asia, Central Asia, Africa and other countries and regions, they are well received and used by our customers.Taizhou Maiqiang Machinery Co., Ltd will constantly improve the investment on research. With 20 years experience of manufacturing blow molding machine, we can provide users with stable, efficient, cost-saving bottle making equipments. Taizhou Maiqiang Machinery Co., Ltd will offer efficient after-sales service and product solutions to be your worthy partner.Let's create a better tomorrow hand in hand!
Customer site view:


FAQ:
1.Are you a factory or trading company?
We are a factory, so the price is more favorable for you. Welcome to visit Taizhou Maiqiang Machinery Co., Ltd!
2.What is your payment term?
30% down payment against order confirmation, 70% balance when the machines are ready. Upon receipt all your payment, we will delivery the goods at once.
3.Is this price a single machine price?
Yes, this price is the price of the machine, and the auxiliary machine is extra.
4.What is your delivery time?
All the machines will be produced according to the order. Usually in 20 working days, depends on your projects.
5.What about installing in customer factory?
After the machines arrive at your factory, we can arrange engineer to install the machines and train your workers.
6.What is the guarantee time?
We offer A one-year warranty and A lifetime after-sales service.
